B04-2 Solar Power Intersection Safety Guidance Solutions
solar inpavement road marker SRS022 |
 |
Situations:
There are two main concerns in tunnels: guidance and emergency. Small car Driver’s visibility in front sometimes is limited when after a bigger truck, and easy to ignore the traffic lights’ signals, especially in bad weathers such like foggy days, is insufficient. There will be 2 bad effect ions, 1. Lower traffic flow. 2, Traffic accidents
The drive need a clear view of the traffic signal or at least know the signals clearly if out of view. The idea place is right side of the drive’s eyes. This may give the driver a much longer time to make actions next, which could effectively reduce accidents and increase the traffic flow.
Now we have a solution.
Improved embedded road markers, could connected with the traffic signal controllers, and they could change and show the same color as the traffic signal as the right directions. Clear View and durable design.
BENEDRIVE Products:
Key Feature
- Clear view of Green and Red colors
- Fast and easy installation, no cables needed, no cutting the road
- Embedded design, much more durable

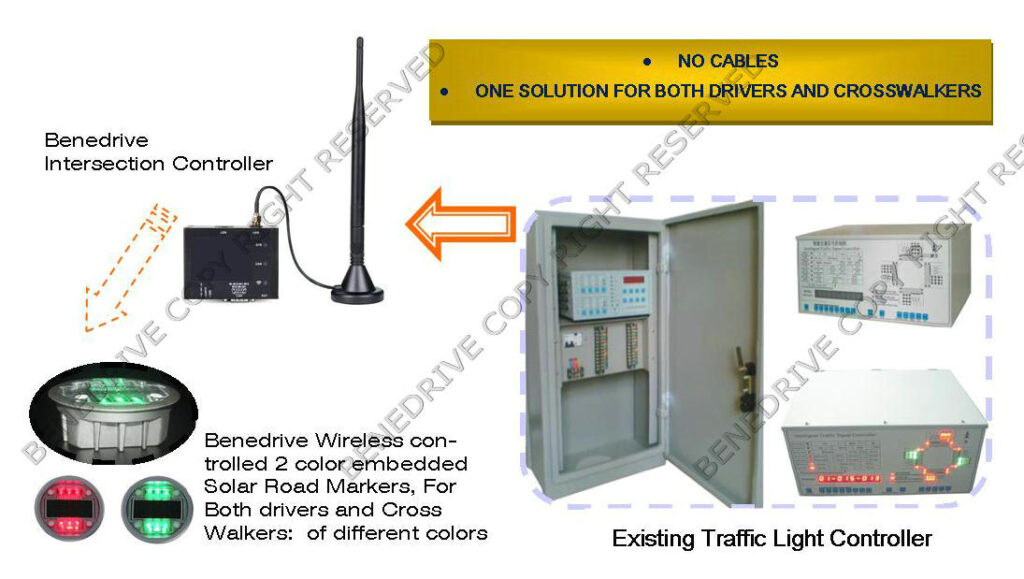

How It works:
Product Specifications:

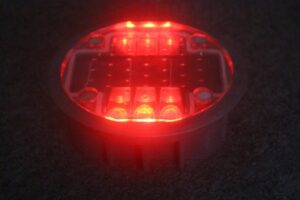

Markers:
Size: Dia.140mm X 50mm (drill Dia.120MM*50MM hole for installation)
SolarPower input: 5V 120MA,
Shell: Special PC + Aluminium
Battery: 3.2V 3000MA
Compression resistance: over 20 tons (Products itself), can stand over 100tons after installation (according to the road base materials and quality).
Water-proof: IP68
LED: 6 pcs supper bright LEDs, Each side 3 LEDs
Frequency: flashing 1 HZ
Led color: red & green
Working temperature: -40 degree – +70 degree
Viewing distance: >1000 meters
Power consume: <0.4W / pc
Weight: 0.650 KGS
Packing: 1 pc/box, 46pcs/carton, Carton size: 40*50*30cm
Controller:
Input : 220V AC (Directly connected with the traffic lights’ power and signal cables)
Radio frequency: 433MHZ
Control distance: 300 meters

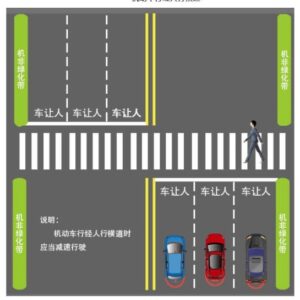

Installation instructions:
HOW TO ORDER:

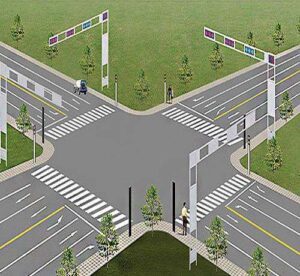

One cross walks need: ONE CONTROLLER + NUMBERS OF SOLAR MARKERS
Examples:
One controller + numbers of solar markers
If have traffic lights In the middle of the crosswalk, then it need 2 controllers + numbers of solar markers
4 controllers + numbers of solar markers
If have traffic lights In the middle of the crosswalk, then it need 8 controllers + numbers of solar markers
