Intersections Guidance Solutions B04
Intersections Guidance Solutions Introductions:
There are two main concerns in tunnels: guidance and emergency. Small car Driver’s visibility in front sometimes
is limited when after a bigger truck, and easy to ignore the traffic lights’ signals, especially in bad weathers
such like foggy days, is insufficient.
There will be 2 bad effect ions:
1. Lower traffic flow
2. Traffic accidents
The driver need a clear view of the traffic signal or at least know the signals clearly even it is out of view. The idea place is
at side of the drive’s eyes. This may give the driver much longer time to make next actions, which could effectively
reduce accidents and increase the traffic flow.
Now we have a solution.
Improved embedded road markers, could connected with the traffic signal controllers, and they could change and
show the same color as the traffic signal as the right directions.

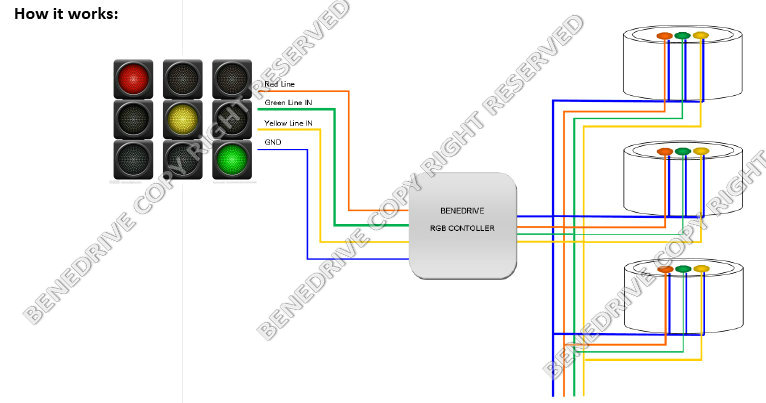

How it works:
Benedrive intersection solutions
Intersections Guidance Solutions Products’ Key Feature:
1. Clear view over 1000 meters
2. Fast and easy installation
3. Embedded design, snow ploughable
4. LED directions adjustable even after installation, 45 degrees and 90 degree.
HOW TO ORDER:
One signal line one controller could run 50 pcs markers
Controller: INPUT: 220V AC, OUTPUT: 12V DC
Wired Marker: INPUT: 12 DC
One controller could run upto 50 pcs markers
Installation Instructions
Connect the cables and markers
Saw cut cable trench, 5mm(Width) X 70mm (depth) ( Width
According to the diameter of the cable or tube will be used)，
Core drilling of holes, Dia.90mm X 70mm (depth)
Clean and dry holes and Trench
Fill glue to 1/3 of the depth
Pull cables and studs shell in
Fill more glue till flat to the road surface, clean the extra glue.
Now installation finished. The installation parts left their and
will be moved off by wheels.
